Description

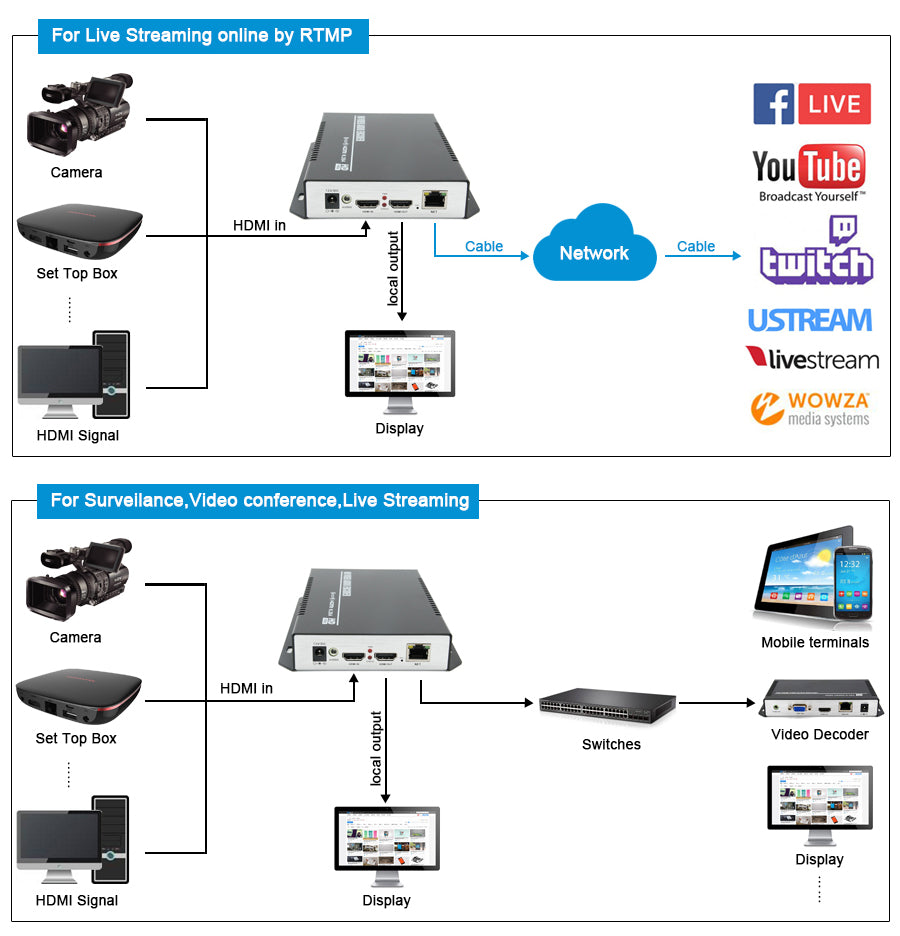

ZQ-EH111 video encoder can deliver H.264 encoding HDMI video streams of independent IP output to various servers for live application, such as Wowza media server, windows media server, social media platform, and some other servers based on RTSP/RTMP/RMPTS/ HLS/ TS/ Onvif protocols.
Video encoder is widely applied in hotel TV systems, school teaching, livebroadcasting. And ZQ-EH111 has approved by CE, FCC, ISO, etc.
Product Feature:
● High-performance hardware encoding
● support H.264 BP/MP/HP
● support AAC / G.711 Advanced Audio Coding format quality
● CBR / VBR rate: 16Kbps ~ 12Mbps
● 1000M network interface uses a full-duplex mode
● mainstream and secondary stream can be pushed to a different server
● Supports up to 720P, 1080P @ 60HZ HD video input
● Support image parameter settings
● support HDCP protocol and Blu-ray
● support HTTP, UTP, RTSP, RTMP, RTMPS，RTP, ONVIF protocol
● the mainstream and sidestream use the different network protocol for transmission
● WEB interface, English and Chinese is optional for configuration interface
● WEB interface management authority
● Support remote management in WAN(WEB)
● Support resolution customized settings
● Support one key to restore the factory configuration
● Support SDK, secondary development
Specfication:
| Model No. | ZQ-EH111 |
| Video | |
| Input interface | HDMI*1 |
| Support resolution | Max support 1920*1080P@60fps |
| Output interface | Ethernet port(RJ45) *1, HDMI |
| Video encoding | H.264 Baseline Profile H.264 Main Profile H.264 High Profile |
| Code Rate control | 16kbps- 12Mbps |
| Code Rate | CBR/VBR |
| Audio | |
| Input interface | built-in audio * 1 |
| Audio encoding | ACC, MP3 |
| Sampling rate | Auto |
| Bit-rate Option | 48K,64K,96K,128K,160K,192K,256K |
| Sampling Accuracy | 24 Bit |
| Audio Data-rate | 64Kb/s to 384Kb/s |
| Network | |
| RJ45 | 10M/1000M Ethernet port |
| Program streaming | HTTP, UDP/RTP, RTSP, RTMP, RTMPS, ONVIF, HLS, FLV |
| Control Panel | Web panel ( Language is English), remote upgrade |
| Firmware Update | Enable by uploading files to dashboard |
| General | |
| Dimension(W*L*H) | 166*130*280mm |
| Gross Weight | 0.3kg |
| Temperature | 0 ~ 45℃（for working）,-20~60℃（for storing) |
| Humidity | <90%, non-condensing |
| Input Voltage | DC 12V/1A |
| Power Consumption | 5W |
